LB035Q02-TD02 LG LCD Panel 3.5 inch Normally White with 70.08×52.56 mm
Products Information:
| Panel Size : | 3.5 inch |
| Dot Resolution : | 320(RGB)×240 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 115 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.073×0.219 mm (H×V) |
| Pixel Pitch : | 0.219×0.219 mm (H×V) |
| Weight : | 35.0/40.0g (Typ./Max.) |
| Surface : | Clear, Hard coating (3H) |
| Active Area : | 70.08×52.56 mm (H×V) |
| Bezel Area : | 72.48×55.26 mm (H×V) |
| Outline Dimension : | 76.9×63.9 mm (H×V) |
| Outline Depth : | 3.15±0.15 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| | |
| | |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 370 cd/m² (Typ.) |
| Contrast Ratio : | 400 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (6-bit + Hi-FRC) |
| Response Time : | 25 (Typ.)(Tr+Td) |
| Viewing Angle : | 65/65/50/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.310; Wy:0.330 |
| White Variation : | 1.20/1.40 (Typ./Max.)(9 points) |
| Sunlight Readable : | N |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LH260Q32-SH03 | LG Display | 2.6" | 240×320 |
| LH275WQ2-SH01 | LG Display | 2.8" | 240×400 |
| LH280Q33-SH03 | LG Display | 2.8" | 240×400 |
| LH280Q33-SH02 | LG Display | 2.8" | 240×400 |
| LH220Q34-TH02 | LG Display | 2.2" | 240×320 |
| LH280Q33-SH01 | LG Display | 2.8" | 240×400 |
| LH219WQ1-FH01 | LG Display | 2.2" | 240×376 |
| LH300H01-SH01 | LG Display | 3.0" | 320×480 |
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.
Packing & Delivery for our LCD Screen Panel Replacements:
- Anti-static Bag Packing.
- Anti-Shock Bubble Bag Packing
- Foam and Hard Carton Packing
- Picked up by forward and delivered by express services.

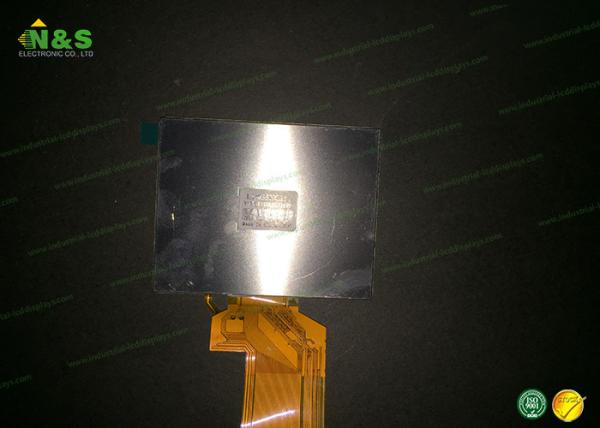

LB035Q02-TD02 Picture
