132×99 mm NL8060BC16-01 NEC LCD Panel 6.5 inch Normally White

Product Categories
N&S ELECTRONIC CO., LIMITED
Contact Now

132×99 mm NL8060BC16-01 NEC LCD Panel 6.5 inch Normally White

Brand Name : NEC

Model Number : NL8060BC16-01

Certification : ISO9001

Place of Origin : KOREA

MOQ : 1

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 500PCS/DAY

Delivery Time : 1-3 Working Days

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Panel Size : 6.5 inch

Resolution : 800(RGB)×600 , SVGA

Display Modetion : TN, Normally White, Transmissive

Outline : 153×118 mm

Active Area : 132×99 mm

Panel Type : a-Si TFT-LCD , LCM

Contact Now

132×99 mm NL8060BC16-01 NEC LCD Panel 6.5 inch Normally White

NL8060BC16-01 Product Information

Panel Size :6.5 inch
Dot Resolution :800(RGB)×600 (SVGA)
Pixel Configuration :RGB Vertical Stripe
Pixel Density :153 PPI
Aspect Ratio :4:3 (H:V)
Form Factor :Flat Rectangle Display
Dot Pitch :0.055×0.165 mm (H×V)
Pixel Pitch :0.165×0.165 mm (H×V)
Weight :150/160g (Typ./Max.)
Surface :Clear, Hard coating (3H)
Active Area :132×99 mm (H×V)
Bezel Area :135.5×102.4 mm (H×V)
Outline Dimension :153×118 mm (H×V)
Outline Depth :8.2 (Typ.) mm
Holes & Brackets :Side mounting holes (4-M2)
Landscape or Portrait :Landscape type
Touch Panel :Without


Packaging & Delivery
· Delivery Lead Time :2~3 weeks
· Minimum Order :1 pcs LCD Panel
· Supply Ability :100 PCS / Per Day

Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.

Display Mode :TN, Normally White, Transflective
Brightness :300 cd/m² (Typ.)
Contrast Ratio :150 : 1 (Typ.) (Transmissive)
Contrast Ratio :15:1 (Typ.) (Reflective)
Display Color :262K/16.7M (6-bit / 6-bit + Hi-FRC)
Color Gamut :40% NTSC (CIE1931)
Response Time :8/22 (Typ.)(Tr/Td)
Viewing Angle :25/25/25/25 (Typ.)(CR≥10) (L/R/U/D)
White color Chromaticity :Wx:0.313; Wy:0.329
White Variation :1.25/1.40 (Typ./Max.)(5 points)
Reflectance Ratio :35% (Typ.)
Sunlight Readable :Y


Below are our other LCD panels stock for your easy reference:

Panel ModelBrandSizeResolution
ED133TT1E Ink13.3"2200×1650
ED060SD1E Ink6.0"600×800
ED060SCTE Ink6.0"600×800
ET043OC1E Ink4.4"360×640
EN133UT1E Ink13.3"1600×1200
ED047TC1E Ink4.7"540×960
ED133UT1E Ink13.3"1600×1200
ES133UT1E Ink13.3"1600×1200
ED060SCQE Ink6.0"600×800
ED097OD2E Ink9.7"1200×825
ED060KG1E Ink6.0"1072×1448
ED060KC1E Ink6.0"1072×1448
ED060XC9E Ink6.0"758×1024
ED060XD7E Ink6.0"758×1024

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

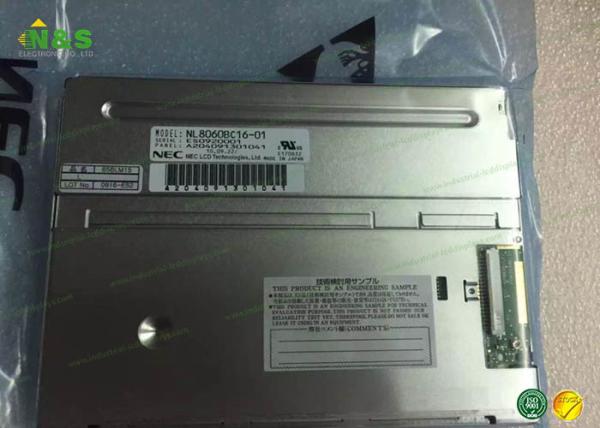

NL8060BC16-01 Picture

132×99 mm NL8060BC16-01 NEC LCD Panel 6.5 inch Normally White
