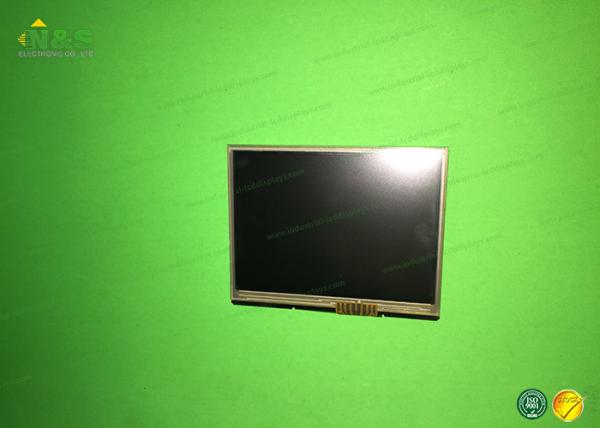

LH220Q32-FD01 LG LCD Panel 2.2 inch Normally White with 39.36×39.36 mm Active Area

Product Categories
N&S ELECTRONIC CO., LIMITED
Contact Now

LH220Q32-FD01 LG LCD Panel 2.2 inch Normally White with 39.36×39.36 mm Active Area

Brand Name : LG Display

Model Number : LH220Q32-FD01

Certification : ISO9001

Place of Origin : KOREA

MOQ : 1

Payment Terms : Western Union, T/T, MoneyGram, T/T

Supply Ability : 500PCS/DAY

Delivery Time : 1-3 Working Days

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Panel Type : a-Si TFT-LCD , LCM

Panel Size : 2.2 inch

Resolution : 320(RGB)×320

Display Mode : TN, Normally White, Transmissive

Active Area : 39.36×39.36 mm

Outline : 47.4×51.85 mm

Contact Now

LH220Q32-FD01 LG LCD Panel 2.2 inch Normally White with 39.36×39.36 mm Active Area

LH220Q32-FD01 Specification

Panel Size :2.2 inch
Dot Resolution :320(RGB)×320
Pixel Configuration :RGB Vertical Stripe
Pixel Density :206 PPI
Aspect Ratio :1:1 (H:V)
Form Factor :Flat Rectangle Display
Dot Pitch :0.041×0.123 mm (H×V)
Pixel Pitch :0.123×0.123 mm (H×V)
Weight :18g (Typ.)
Surface :Hard coating (3H)
Active Area :39.36×39.36 mm (H×V)
Outline Dimension :47.4×51.85 mm (H×V)
Outline Depth :3.5/3.8 (Typ./Max.) mm
Landscape or Portrait :Landscape type
Touch Panel :Embeded (4-wire Resistive)
Display Mode :TN, Normally White, Transflective
Brightness :160 cd/m² (Typ.)
Contrast Ratio :120 : 1 (Typ.) (Transmissive)
Contrast Ratio :5:1 (Typ.) (Reflective)
Display Color :65K ()
Color Gamut :45% NTSC (CIE1931)
Response Time :35 (Typ.)(Tr+Td)
Viewing Angle :45/45/40/50 (Typ.)(CR≥5) (L/R/U/D)
White color Chromaticity :Wx:0.290; Wy:0.313
White Variation :1.25 (Max.)(9 points)
Transmissivity :3.5% (Typ.)(with Polarizer)
Sunlight Readable :Y


FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.

Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Competitive price for different brands hard disk.
• Mass stock with the better price.
• Multiple options.
• Warranty service.
• Better team to provide the before-sales, on-sale and after-sale service
• Pls send us message if any hard disk needed.

Here comes our other LCD panels stock for your easy reference:

Panel ModelBrandSizeResolution
LG 1.3 Circular P-OLEDLG Display1.3"320×320
LH300WQ1-ED01LG Display3.0"240×400
LB050S01-RD02LG Display5.0"800×600
LB050S01-RD01LG Display5.0"800×600
LM016LC1S07SHARP1.9"96×128
LC430DUY-SHA3LG Display43"1920×1080
LS050K3SX06ASHARP5.0"720×1280

Pls contact to us for more stock information: salespm@nselectronic.com.hk
