B101UAN07.3 HW0A 135.36×216.576 mm Active Area Glare (Haze 0%), Hard coating Surface

Product Categories
N&S ELECTRONIC CO., LIMITED
Contact Now

B101UAN07.3 HW0A 135.36×216.576 mm Active Area Glare (Haze 0%), Hard coating Surface

  • 1
  • 2
  • 3

Brand Name : AUO LCD Panel

Model Number : B101UAN07.3 HW0A

Certification : ISO9001

Place of Origin : Japan，Korea,Taiwan

MOQ : 1

Payment Terms : T/T, Western Union, MoneyGram, Paypal

Supply Ability : 500PCS/DAY

Delivery Time : 1-3 Working Days

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Panel Brand : AUO

Contrast Ratio : 1000:1 (Typ.)

Response Time : 25 (Typ.)(Tr+Tf)

Frequency : 60Hz

Signal Interface : MIPI (4 data lanes) , 39 pins

Panel Model : B101UAN07.3 HW0A

Input Voltage : 3.3V (Typ.)

Panel Size : 10.1 inch

Contact Now

B101UAN07.3 HW0A 135.36×216.576 mm Active Area Glare (Haze 0%), Hard coating Surface

AUO B101UAN07.3 HW0A General Features

Active Area : 135.36×216.576 mm
Outline : 141.56×228.23×4.2 mm
Surface : Glare (Haze 0%), Hard coating
Brightness : 400 cd/m² (Typ.)
Contrast Ratio : 1000:1 (Typ.)
Display Colors : 16.7M (8-bit) , CIE1931 72%
Response Time : 25 (Typ.)(Tr+Tf)
Viewing Angle : 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)



Our Advantage

Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: PayPal, Western Union and T/T are preferred, so just tell us which is easier to you. Then we will send you our bank details. Or your requirements.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, Trade Manager or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 7~10 working days. For bulk orders, usually 15~20 working days and depends on your design.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship samples. For bulk orders, we support shipping by air or by sea.
Q6: Can you customize according to our designs and put our logo on the products?
A6: Yes, we support both standard and customized products and can put your logo on the products. Our experienced R&D team will support technical questions. ODM/OEM is welcome.


Packaging & Delivery

Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Plastic Trays Inside.
2. Layers of cartons.
3. Fragile Sign on top.
4. Can be customized.

AUO B101UAN07.3 HW0A Signal Interface

Signal Category : MIPI
Signal Class : MIPI (4 data lanes)
Input Voltage for Panel : 3.3V (Typ.)
Input Current for Panel : 150mA (Max.)
Panel Power Consumption : 0.45W (Max.)
Interface Type : Connector
Signal Interface : Brand Model Pin Pitch Pins Amount Configuration
Panasonic AYF333935 0.3 mm 39 pins 1 pcs


Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
X139BLB01.0 AUO 1.39" 400×400
H381DLN01.0 AUO 3.8" 1080×1200
H497TLB01.4 AUO 5.0" 720×1280
H163QLN01.0 AUO 1.63" 320×320
H139BLN01.2 AUO 1.39" 400×400
H500TLB01.0 AUO 5.0" 720×1280
X546DLB01.0 AUO 5.5" 1080×1920
H546DLB01.1 AUO 5.5" 1080×1920
H429ALN01 V0 AUO 4.3" 540×960
H139BLN01.1 AUO 1.39" 400×400
H163QLN01.1 AUO 1.63" 320×320

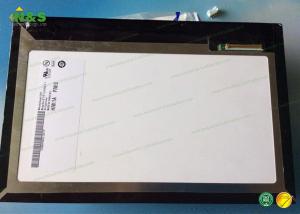

Details Pictures for B101UAN07.3 HW0A

B101UAN07.3 HW0A 135.36×216.576 mm Active Area Glare (Haze 0%), Hard coating Surface

B101UAN07.3 HW0A 135.36×216.576 mm Active Area Glare (Haze 0%), Hard coating Surface
