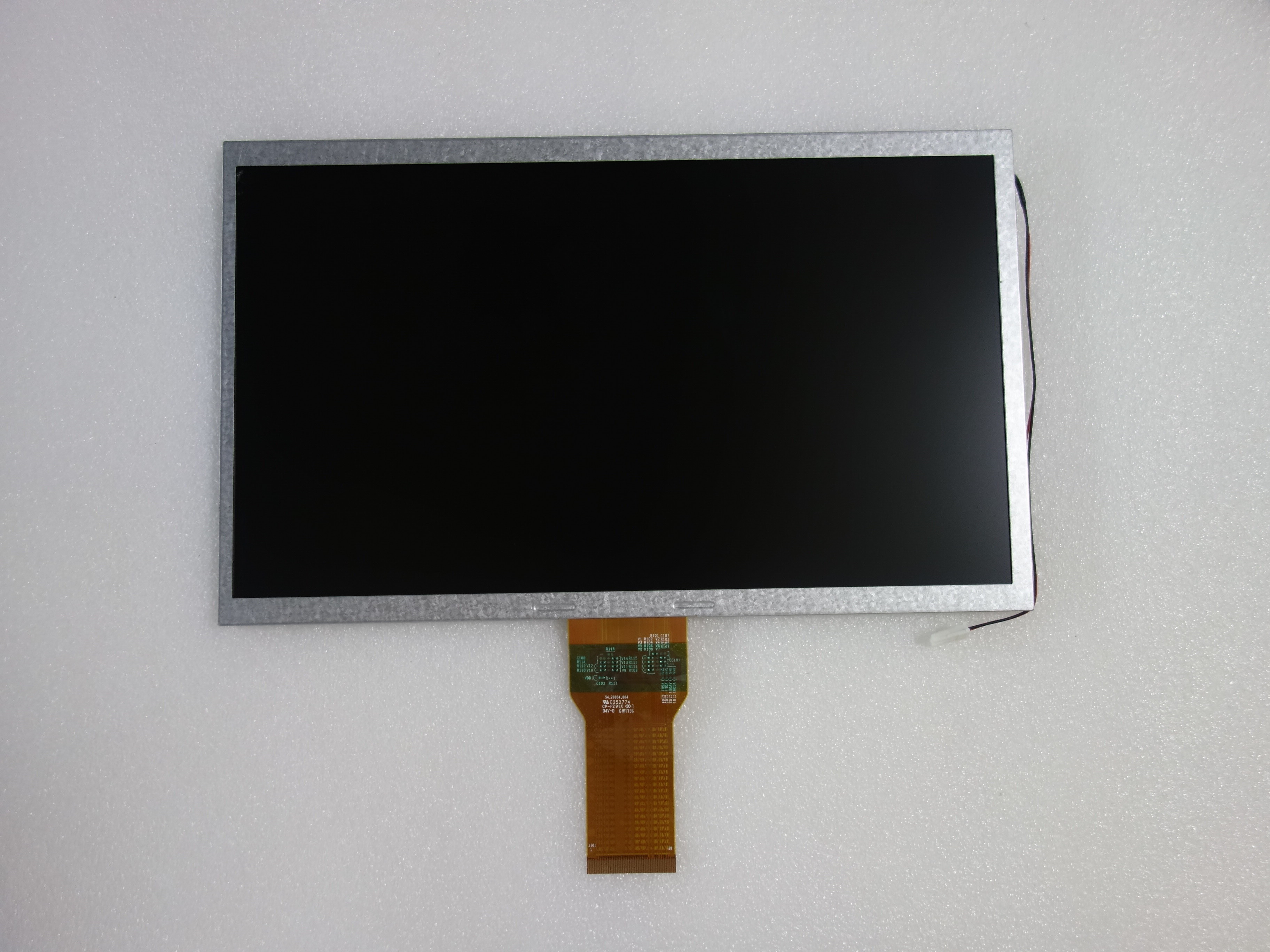

1.AUO G101STN01.5 Mechanical Details
| Pixel Features : | Resolution:1024(RGB)×600, WSVGA Dot Pitch(mm):0.0725×0.2088 (H×V) Pixel Format:RGB Vertical Stripe Pixel Pitch(mm):0.2175×0.2088 (H×V) |
| Mechanical Size : | Active Area(mm):222.72(H) × 125.28(V) Bezel Area(mm):226.43(H) × 128.1(V) Outline Dim.(mm):235(H) × 143(V) Depth(mm):5.0±0.5 |
| Outline Features : | Form Style:Flat Rectangle Shape Style:- Aspect Ratio:16:9 (H:V) Orientation:Landscape type |
| Mounting : | Without |
| Other Spec : | Weight:340g (Max.) Treatment:Antiglare, Hard coating (3H) |
2.AUO G101STN01.5 Optical Details
| Basic Information : | Luminance(cd/m²) 350 (Typ.) Contrast Ratio 500:1 (Typ.) (Transmissive) Viewing Angle 70/70/60/60 (Typ.)(CR≥10) Display Mode TN, Normally White, Transmissive Best View on - Response(ms) 7/9 (Typ.)(Tr/Td) |
| Color Performance : | White Coordinate Wx:0.310; Wy:0.330 Display Colors 262K/16.7M (6-bit / 6-bit + Hi-FRC) Color Temperature 6638K White Uniformity 1.25/1.33 (Typ./Max.)(5 points) |
| 1931 Color Gamlt : | NTSC Ratio 46% sRGB 65% coverage Adobe RGB 48% coverage DCI-P3 48% coverage Rec.2020 35% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
3.AUO G101STN01.5 Backlight Details
| Backlight Features : | Type WLED Quantity - Position Edge light type Replacement - Shape - Life Time 15K(Min.) (Hours) |
| Lamp Electrical : | Voltage Supply 9.3/9.6V (Typ./Max.) Current Supply 32.5mA (Typ.) Consumption 2.50W (Typ.) |
| Interface Features : | Position Type Connector |
| Interface Detail : | Brand Model Pitch Pins Quantity Pin Configuration JST 3.5 mm 2 pins 1 pcs BLE-2PINS-AC |
| Backlight Driver : | No |
4.Service
5.FAQ
Q1:What's the quality of your LCD Panel?
A:Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc. We are available to meet your different requirements.
Q2:What is your return and refund policy?
A:We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q3:How long is the lead time?
A:The lead time is about 2-3 working days after receipt of payment.
Q4:Do you accept sample order?
A:Yes,sample order is welcome.
Q5:How can I get the quotation?
A:Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
