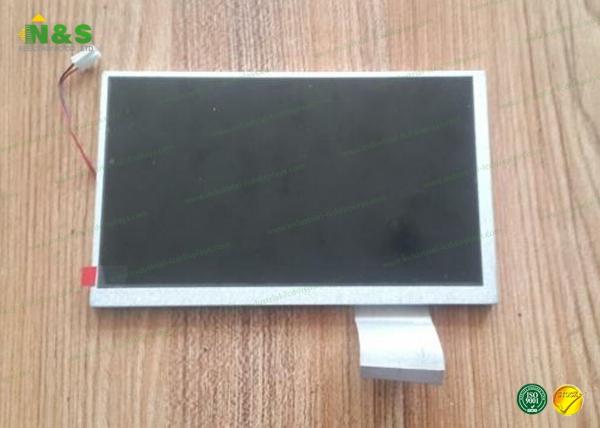

HannStar HSD070I651-F01 7.0 inch 154.08×86.58 mm Active Area 164.9×100 mm Outline

Product Categories
N&S ELECTRONIC CO., LIMITED
Contact Now

HannStar HSD070I651-F01 7.0 inch 154.08×86.58 mm Active Area 164.9×100 mm Outline

  • 1
  • 2

Brand Name : HannStar

Model Number : HSD070I651-F01

Certification : ISO9001

Place of Origin : Japan,Korea

MOQ : 1 piece

Payment Terms : T/T, Western Union, MoneyGram, Paypal

Supply Ability : 100 PCS PER DAY

Delivery Time : 1-3 Working Days

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Resolution : 480(RGB)×234

Display Mode : TN, Normally White, Transmissive

Active Area : 154.08×86.58 mm

Brightness : 200 cd/m² (Typ.)

Contrast Ratio : 500:1 (Typ.)

Display Colors : Full color

Response Time : 5/20 (Typ.)(Tr/Td)

Frequency : 60Hz

Contact Now

HannStar HSD070I651-F01 7.0 inch 154.08×86.58 mm Active Area 164.9×100 mm Outline

Company Strength

1. ISO9001 certificated, Factory Direct Supplied

2. RoHS Compliant, Lead Free, Reach Compliant

3. Competitive Price and Short Lead-time

4. Professional Team with Rich Experiences in Design/Mfg/Quality Control

5. Small MOQ Support & Fast Response to Customers

6. Long Product Life Time

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
HSD043B8W2-C01 HannStar 4.3" 480×800
HSD070IDW3-A00-0299 HannStar 7.0" 800×480
HSD050F9W1-A00 HannStar 5.0" 480×272
HSD050FDW1-A00 HannStar 5.0" 800×480
HSD043F9W1-A00 HannStar 4.3" 480×272

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

HannStar HSD070I651-F01 General Features

Panel Brand : HannStar
Panel Model : HSD070I651-F01
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 7.0 inch
Resolution : 480(RGB)×234
Display Mode : TN, Normally White, Transmissive
Active Area : 154.08×86.58 mm
Outline : 164.9×100 mm
Surface : Antiglare, Hard coating (3H)
Brightness : 200 cd/m² (Typ.)
Contrast Ratio : 500:1 (Typ.)
Display Colors : Full color
Response Time : 5/20 (Typ.)(Tr/Td)
Viewing Angle : 70/70/65/65 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 3S5P WLED
Signal Interface : TFT Specific Analog RGB , 26 pins
Input Voltage : 3.3/-/15/-10V (Typ.)(DVDD/AVDD/VGH/VGL)

Packaging & Delivery

Packaging: Safety Package For all of our LCD Screen Panel Replacements.

Details: 1. Plastic Trays Inside

2. Layers of cartons

3. Fragile Sign on top.

4. Can be customized.

HannStar HSD070I651-F01 Mechanical Features

Panel Size : 7.0 inch
Dot Resolution : 480(RGB)×234
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 76 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.107×0.370 mm (H×V)
Pixel Pitch : 0.321×0.370 mm (H×V)
Weight : 160g (Typ.)
Surface : Antiglare, Hard coating (3H)
Active Area : 154.08×86.58 mm (H×V)
Bezel Area : 156.4×89.0 mm (H×V)
Outline Dimension : 164.9×100 mm (H×V)
Outline Depth : 5.7/6.0 (Typ./Max.) mm
Landscape or Portrait : Landscape type
Touch Panel : Without
