Antiglare 8.0 inch A080XN01 V1 AUO LCD Panel quick Response Time
AUO A080XN01 V1 General Features
Panel Brand :AUO
Panel Model : A080XN01 V1
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 8.0 inch
Resolution : 1024(RGB)×768 , XGA
Display Mode : TN, Normally White, Transmissive
Active Area : 162.048×121.536 mm
Outline : 183×141.91 mm
Surface : Antiglare, Hard coating (2H)
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 600:1 (Typ.)
Display Colors : 16.2M (6-bit + FRC) , CIE1931 45%
Response Time : 10/15 (Typ.)(Tr/Td)
Viewing Angle : 55/55/75/75 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 3S10P WLED Without Driver
Signal Interface : LVDS (1 ch, 8-bit) , 40 pins
Input Voltage : 3.3/5.3/-5.3V (Typ.)(VDDIO/VDPA/VDNA)
Competitive Advantage:
1 We are a leading manufacturer of LCD products for more than 10 years.
2 We got the ISO9001 quality management system certification.
3 We have our own R&D team, and accept OEM order as per customer’s design.
4 We are the 5-years four star member of Globalsources and the Three year Gold supplier in Alibaba.
5 Our main material LCD panels all are directly imported from Samsung and LG in Korea.
6 All products win the certificate of CE,CCC,FCC and RoHS.
7 Prompt delivery, we always have the LCD panels in stock. Delivery can be made in 5 days.
8 3-years warranty is offered.
.
We will test them strictly before shipping.We will ship it in 1-3 working days after your paying.
We only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be
different for different countries.
AUO A080XN01 V1 Optical Features
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 600 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.2M (6-bit + FRC) |
| Color Gamut : | 45% NTSC (CIE1931) |
| Response Time : | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle : | 55/55/75/75 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 9 o'clock |
| White color Chromaticity : | Wx:0.310; Wy:0.340 |
| White Variation : | 1.33/1.43 (Typ./Max.)(9 points) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| H497DAN02.1 | AUO | 5.0" | 1080×1920 |
| M270HVN02.3 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.2 CELL | AUO | 27.0" | 1920×1080 |
| M270DTN01.0 CELL | AUO | 27.0" | 2560×1440 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

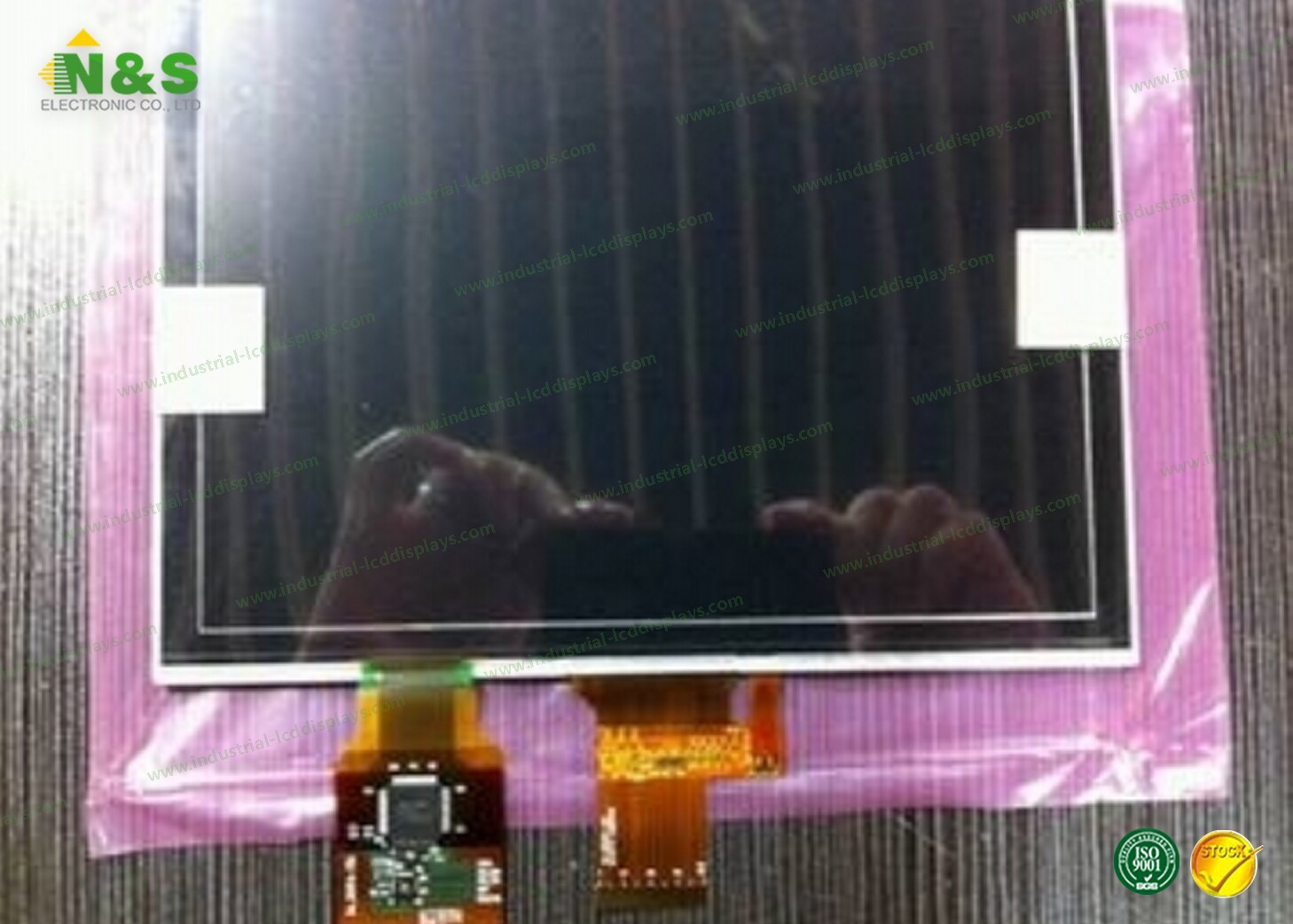

Photos about A080XN01 V1:
