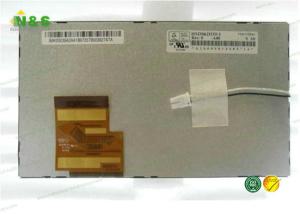

HannStar HSD062IDW1-A00 6.2 inch 137.52×77.232 mm Active Area 155.2×88.2×5.3 mm Outline
HannStar HSD062IDW1-A00 General Features
| Panel Brand : |
HannStar |
| Panel Model : |
HSD062IDW1-A00 |
| Panel Type : |
a-Si TFT-LCD , Panel |
| Panel Size : |
6.2 inch |
| Resolution : |
800(RGB)×480 , WVGA |
| Display Mode : |
TN, Normally White, Transmissive |
| Active Area : |
137.52×77.232 mm |
| Outline : |
155.2×88.2×5.3 mm |
| Surface : |
Antiglare, Hard coating (3H) |
| Brightness : |
400 cd/m² (Typ.) |
| Contrast Ratio : |
600:1 (Typ.) |
| Display Colors : |
262K/16.2M (6-bit / 6-bit + FRC) , CIE1931 50% |
| Response Time : |
2/6 (Typ.)(Tr/Td) |
| Viewing Angle : |
75/75/70/70 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : |
60Hz |
| Lamp Type : |
3S7P WLED |
| Signal Interface : |
TTL (1 ch, 6/8-bit) , 60 pins |
| Input Voltage : |
3.3/10.0/15.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
Company Strength
1. ISO9001 certificated, Factory Direct Supplied
2. RoHS Compliant, Lead Free, Reach Compliant
3. Competitive Price and Short Lead-time
4. Professional Team with Rich Experiences in Design/Mfg/Quality Control
5. Small MOQ Support & Fast Response to Customers
6. Long Product Life Time
HannStar HSD062IDW1-A00 Mechanical Features
| Panel Size : |
6.2 inch |
| Dot Resolution : |
800(RGB)×480 (WVGA) |
| Pixel Configuration : |
RGB Vertical Stripe |
| Pixel Density : |
150 PPI |
| Aspect Ratio : |
16:9 (H:V) |
| Form Factor : |
Flat Rectangle Display |
| Dot Pitch : |
0.0573×0.1609 mm (H×V) |
| Pixel Pitch : |
0.1719×0.1609 mm (H×V) |
| Weight : |
120g (Typ.) |
| Surface : |
Antiglare, Hard coating (3H) |
| Active Area : |
137.52×77.232 mm (H×V) |
| Bezel Area : |
140.7×80.4 mm (H×V) |
| Outline Dimension : |
155.2×88.2 mm (H×V) |
| Outline Depth : |
5.0/5.3 (Typ./Max.) mm |
| Landscape or Portrait : |
Landscape type |
| Touch Panel : |
Without |
