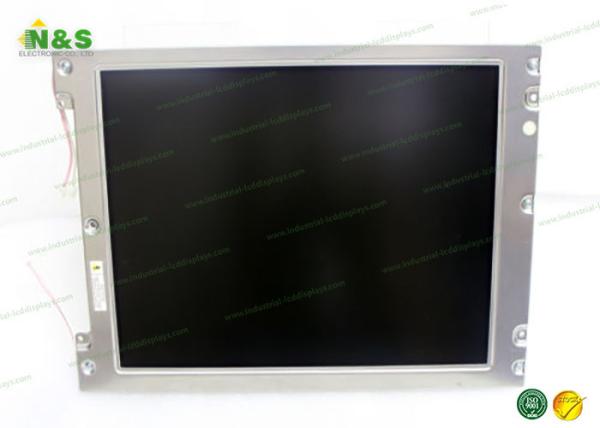

10.4 inch LTM10C209H TORISAN LCD Displays , 640*480 monitor lcd industrial 350 cd / m²
Here comes our other LCD panels stock for your easy reference:
| Panel Model |
Brand |
Size |
Resolution |
| LT065AC57400 |
TOSHIBA |
6.5" |
640×480 |
| LT065AC57000 |
TOSHIBA |
6.5" |
640×480 |
| LT057AC47200 |
TOSHIBA |
5.7" |
640×480 |
| LT057AC47100 |
TOSHIBA |
5.7" |
640×480 |
| LT057AA34E00 |
TOSHIBA |
5.7" |
320×240 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
Detailed Product Description:
| Panel Brand : |
TOSHIBA |
| Panel Model : |
LTM10C209H |
| Panel Type : |
a-Si TFT-LCD , Panel |
| Panel Size : |
10.4 inch |
| Resolution : |
640(RGB)×480 , VGA |
| Display Mode : |
TN, Normally White, Transmissive |
| Active Area : |
211.2×158.4 mm |
| Outline : |
265×188.8×12 mm |
| Brightness : |
350 cd/m² (Typ.) |
| Contrast Ratio : |
250:1 (Typ.) |
| Display Colors : |
262K (6-bit) |
| Response Time : |
50/50 (Max.)(Tr/Td) |
| Lamp Type : |
2 pcs CCFL Without Driver |
| Signal Interface : |
CMOS (1 ch, 6-bit) , 31 pins |
| Input Voltage : |
5.0V (Typ.)(VDD) |
TOSHIBA LTM10C209 Series Model
| Panel Model |
Size |
Type |
Resolution |
cd/m2 |
C/R |
Backlight |
Color |
Interface |
| LTM10C209H |
10.4" |
Panel |
640×480 |
350 |
250:01:00 |
CCFL |
262K |
TTL |
| LTM10C209F |
10.4" |
Panel |
640×480 |
|
|
CCFL |
262K |
|
| LTM10C209AF |
10.4" |
Panel |
640×480 |
|
|
CCFL |
|
|
| LTM10C209AC |
10.4" |
Panel |
640×480 |
|
250:01:00 |
CCFL |
262K |
TTL |
| LTM10C209A |
10.4" |
Panel |
640×480 |
250 |
250:01:00 |
CCFL |
262K |
TTL |
| LTM10C209 |
10.4" |
Panel |
640×480 |
|
250:01:00 |
CCFL |
262K |
TTL |
Product Application
Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.
TOSHIBA LTM10C209H Mechanical Features
Panel Size : 10.4 inch
Dot Resolution : 640(RGB)×480 (VGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 76 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.110×0.330 mm (H×V)
Pixel Pitch : 0.330×0.330 mm (H×V)
Weight : 605g (Typ.)
Active Area : 211.2×158.4 mm (H×V)
Bezel Area : 216.2×163.4 mm (H×V)
Outline Dimension : 265×188.8 mm (H×V)
Outline Depth : 12.0 (Max.) mm
Holes & Brackets : Face mounting holes (4-Φ3.2) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without
TOSHIBA LTM10C209H Optical Features
Display Mode : TN, Normally White, Transmissive
Brightness : 350 cd/m² (Typ.)
Contrast Ratio : 250 : 1 (Typ.) (Transmissive)
Display Color : 262K (6-bit)
Response Time : 50/50 (Max.)(Tr/Td)
