60Hz Antiglare Industrial LCD Displays 75/75/60/70 Viewing Angle
HannStar HSD100IXN1-A10 General Features
| Panel Brand : | HannStar |
| Panel Model : | HSD100IXN1-A10 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 10.0 inch |
| Resolution : | 1024(RGB)×768 , XGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 202.752×152.064 mm |
| Outline : | 215.5×166.5 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 600:1 (Typ.) |
| Display Colors : | 262K (6-bit) , CIE1931 60% |
| Response Time : | 2.4/5.6(Typ.)(Tr/Td) |
| Viewing Angle : | 75/75/60/70 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 3S11P WLED Without Driver |
| Signal Interface : | TTL (1 ch, 6-bit) , 60 pins |
| Input Voltage : | 3.3/9.48/17/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
HannStar HSD100IXN1-A10 Optical Features
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 600 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 60% NTSC (CIE1931) |
| Response Time : | 2.4/5.6(Typ.)(Tr/Td) |
| Viewing Angle : | 75/75/60/70 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.310; Wy:0.330 |
| White Variation : | 1.43 (Max.)(9 points) |
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Plastic Trays Inside
2. Layers of cartons
3. Fragile Sign on top.
4. Can be customized.
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Easy-to-install console, Open Frame chassis-mount display
• Slim dimensions enable better enclosure designs
• Multiple mounting options (100mm VESA mount and side brackets)
• All steel construction provides rugged frame for public use environments
• Two independent touch points (with Windows 7 OS)
• Improved power efficiency and reduced consumption
• TUV, CE, UL, CUL, FCC-B, RoHS, and IPX1 approvals

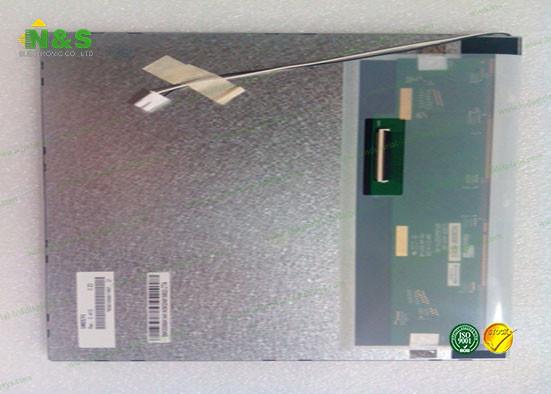

Details Pictures for HannStar
