AUO 7.0 inch TFT LCD Screen G070VW01 V1 WVGA 800(RGB)*480 TN Normally White
Features :
<
AUO G070VW01 V1 Mechanical Features
| Panel Size : | 7.0 inch |
| Dot Resolution : | 800(RGB)×480 (WVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 133 PPI |
| Aspect Ratio : | 15:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0635×0.1905 mm (H×V) |
| Pixel Pitch : | 0.1905×0.1905 mm (H×V) |
| Weight : | 175g |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 152.4×91.44 mm (H×V) |
| Bezel Area : | 154.4×93.44 mm (H×V) |
| Outline Dimension : | 170×111 mm (H×V) |
| Outline Depth : | 5.0/8.5 (Typ./Max.) mm |
| Holes & Brackets : | Without |
AUO G070VW01 V1 Backlight System
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Lamp Position : | Edge light type |
| Lamp Type : | WLED |
| Lamp Life Time : | 30K(Typ.) (Hours) |
| Lamp Replaceable : | Replaceable |
| Interface Type : | Connector |
| Lamp Driver Board : | Embedded (LED Driver) |
| Lamp Driver Board : | 5.0±0.5V |
| Lamp Driver Board : | 0.6A (Typ.) |
| Lamp Driver Board : | 3.0/3.3W (Typ./Max.) |
Guarantee and Refund :
1. All items are in good condition.
2. If the item is defective ( rarely happen ), please inform us within 3 days after you receive it and return it within warranty period ( 12 months )
3. Returned items should have original packaging and in good condition if possible. Please provide us the tracking number and the returning reason.
Trade Terms:
1. Payment terms: 100% by T/T when order confirmed
2. Lead time: 2-5 working days according to the order quantity
3. Sample lead time: within 3 working days after we get payment.
4. The price based on FOB Shenzhen,we will offer best discount according to order quantity.
5. Warranty:offer free spare parts within ONE year.
6. Offer OEM service for batch orders,to print logo and design box.
Features :
1. Three year standard warranty
2.500:1 contrast ratio, and 250-nit brightness (LCD panel)
3. High quality panel with 140° x 130° viewing angle
4. Fully RoHS compliant
5. Multilingual on-screen display (OSD)
6. Optional front mount and rack mount bezels
7. LED Backlight
8. Mounting options including rear-mount and VESA mount
9. Resistive Touchscreen Technology

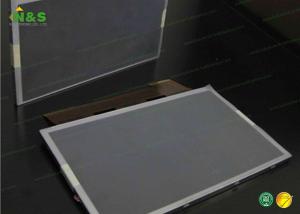

Pictures of AUO G070VW01 V1 LCD Display:
